Pro 1000

SKU: 460236F

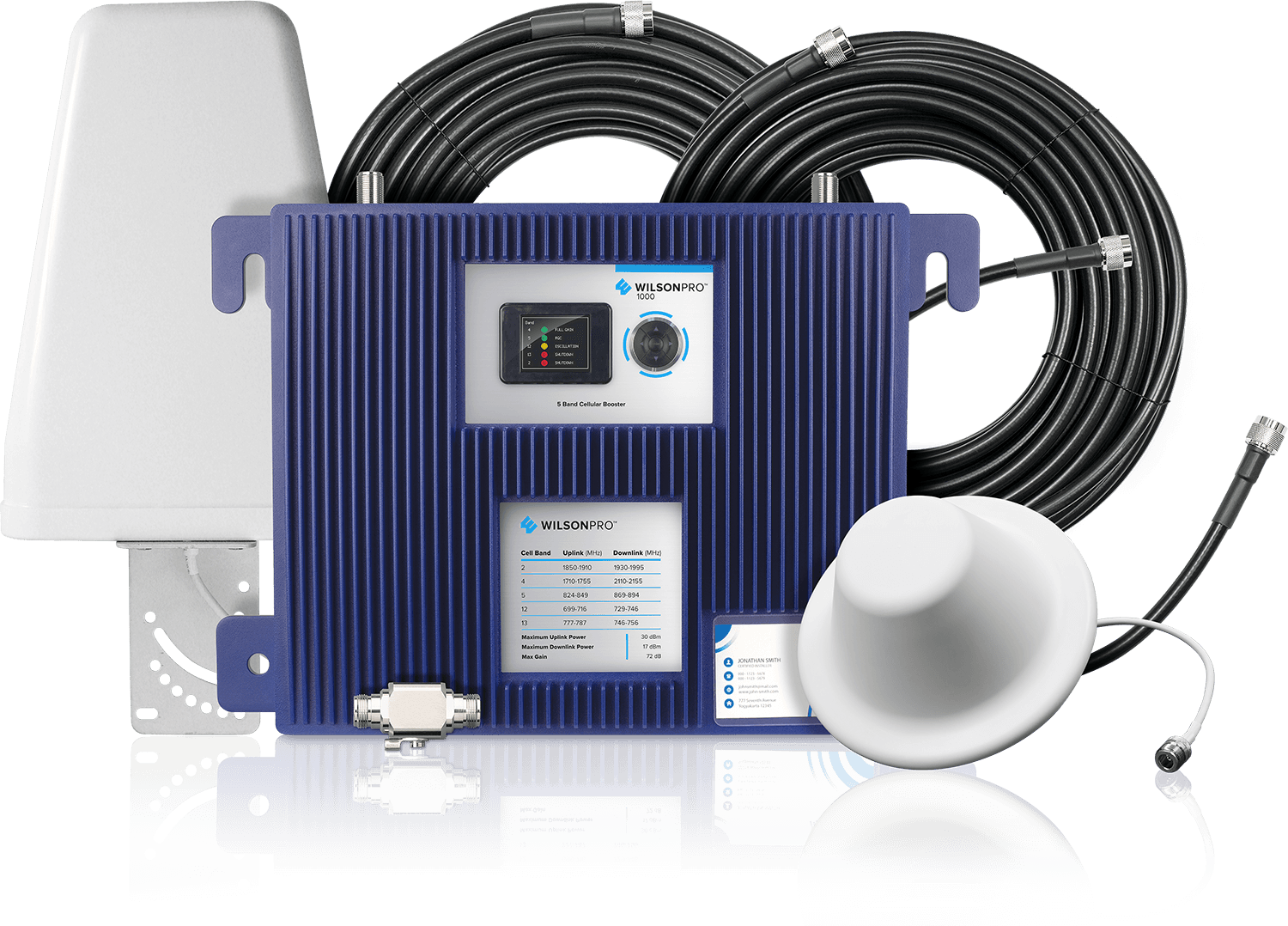

pro-1000-460236-kit-300dpipro-1000-460236-angledWilsonPro 1000 & 1000R Cell Phone Signal Amplifier | WilsonPropro-1000-460236-front
  • Boosts cell phone signal inside a building or large area
  • Up to 70 dB Gain
  • Expansion kits available
Check Mark Icon

3 Year Warranty

from Purchase

Design Icon

Tailored Solutions

Custom System Design

Location Icon

Assembled & Shipped

from a U.S. Facility

Product Description

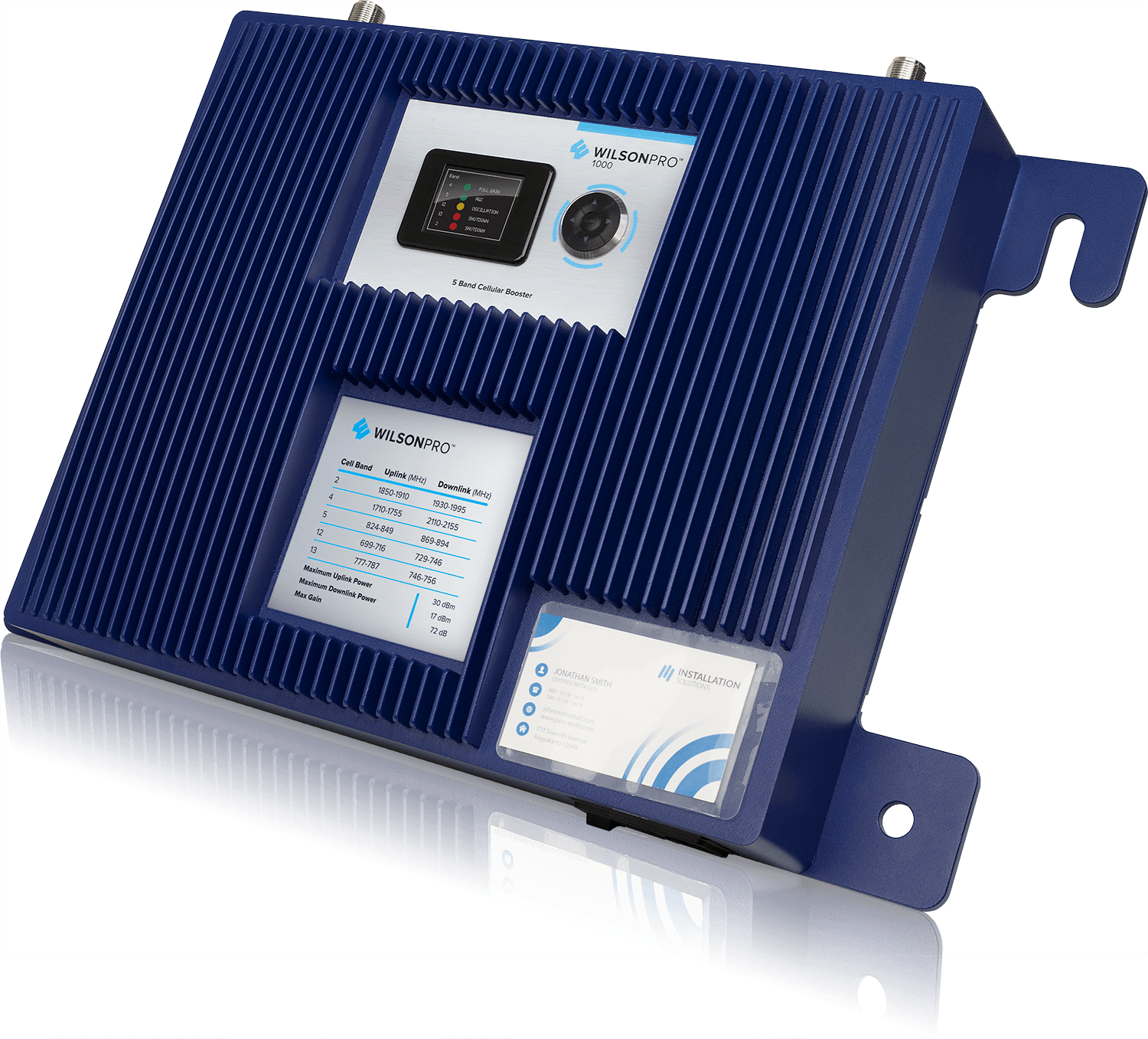

Pro 1000

All Bands, Multi-Carrier Cellular Amplifier

The WilsonPro Pro 1000 is Wilson's flagship cellular amplifier system providing significantly enhanced voice and data coverage, including 4G LTE inside commercial buildings where cell signals may not otherwise penetrate. The result for your clients are no more dropped calls or lost connections, faster uploads/downloads and a reliable, up to 32x stronger signal. The WilsonPro Pro 1000 delivers maximum FCC-allowed downlink power to provide the largest possible indoor signal coverage.

The WilsonPro Pro 1000 also includes Wilson Electronics’ state-of-the-art XDR (eXtended Dynamic Range) technology that prevents signal overload conditions which can, in accordance with FCC regulations, force a booster to reduce power or even shut down.

When the WilsonPro Pro 1000 senses that any incoming cell signal is too strong and threatens to overload the system, XDR automatically reduces signal gain to compensate for this overload condition while maintaining signal coverage throughout the building. In contrast, most competing signal boosters shut down when they reach a maximum incoming signal strength threshold, causing the indoor cell signal to drop out. Both antenna ports are located on the top of the booster unit for easy installation. Like all WilsonPro cellular amplifiers, the WilsonPro Pro 1000 system is universal: it works for all cellular devices, all services including 4G LTE, and all U.S. and Canada cell phone carriers.

How it Works

Pro 1000

The powerful antenna receives cellular signal and delivers it to the booster.


The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.


The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.

Case Study

WilsonPro 1000/1000R – Wilson’s Most Powerful and Reliable Single Output Amplifier Now Shipping

Learn More

Key Features

  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • Industry-best +15 dBm maximum downlink power
  • Full color LDC display, indicating gain and power levels of each band
  • Compatible with all North America cell networks
  • Integrated power supply
  • Three-year warranty


Dimensions3.75 x 11.5 x 18 in
FrequencyBand 12/17 700 MHzBand 5 850 MHzBand 4 1700/2100 MHzBand 13 700 MHzBand 2 1900 MHz
Impedance50 Ohm
Max Gain70 dB
Maximum Power110 - 240 V AC, 50 - 60 Hz, 30 W
