Splitters and Taps | WilsonPro
Sometimes, a building requires multiple inside antennas to adequately distribute a boosted signal. Splitters divide the signal uniformly between two, three, or four inside antennas (with -3dB to -6dB loss).
Similarly, taps allow the user to set up two inside antennas where one receives a stronger cellular signal than the other, such as if one antenna is farther from the booster. Typically, 6dB tap and a 10dB taps are available.
From splitters to boosters, you can count on WilsonPro for reliable parts every time.

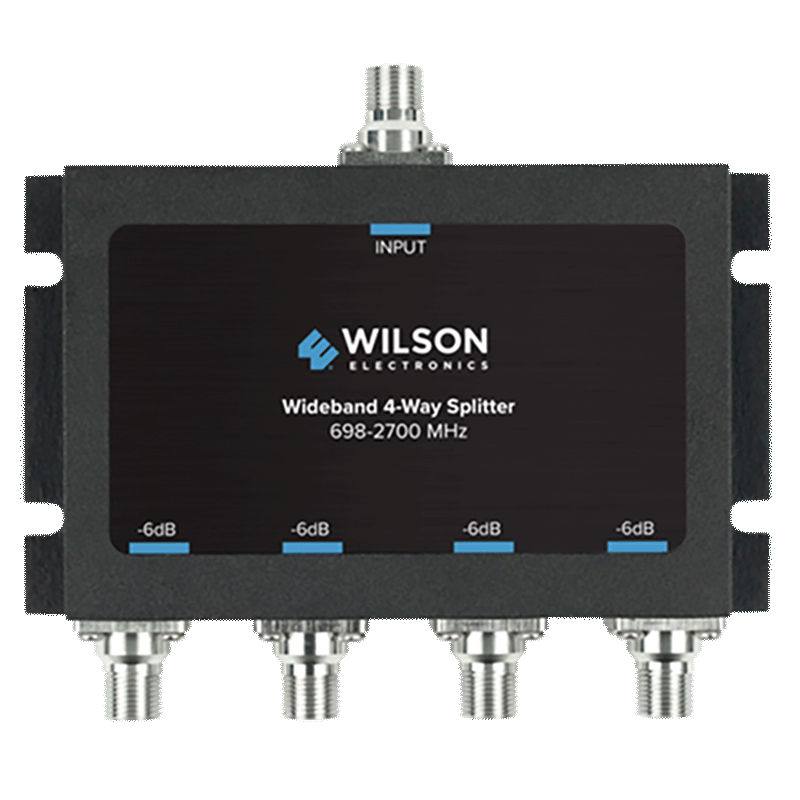

Splitter -6 dB 4 Way (F-Female)
SKU: 850036
4 Way Splitter, 75 Ohm with F Female Connectors. -6 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
Splitter -3 dB 2 Way (F-Female)
SKU: 850034
2 Way Splitter, 75 Ohm with F-Female Connectors. -3 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss.
Splitter -3 dB 2 Way (50 Ohm)
SKU: 859957
2 Way Splitter, 50 Ohm with N-Female Connectors. -3 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
Tap -7 dB (F-Connector)
SKU: 859115
-7 dB Wide Band Tap 75 Ohm with F Connectors. -7 dB, 700-2700 MHz.
Splitter -4.8 dB 3 Way (75 Ohm)
SKU: 850035
3 Way Splitter, 75 Ohm with F-Female Connectors. -4.8 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
Splitter -6 dB 4 Way (50 Ohm)
SKU: 859981
4 Way Splitter, 50 Ohm with N-Female Connectors. -6 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss.

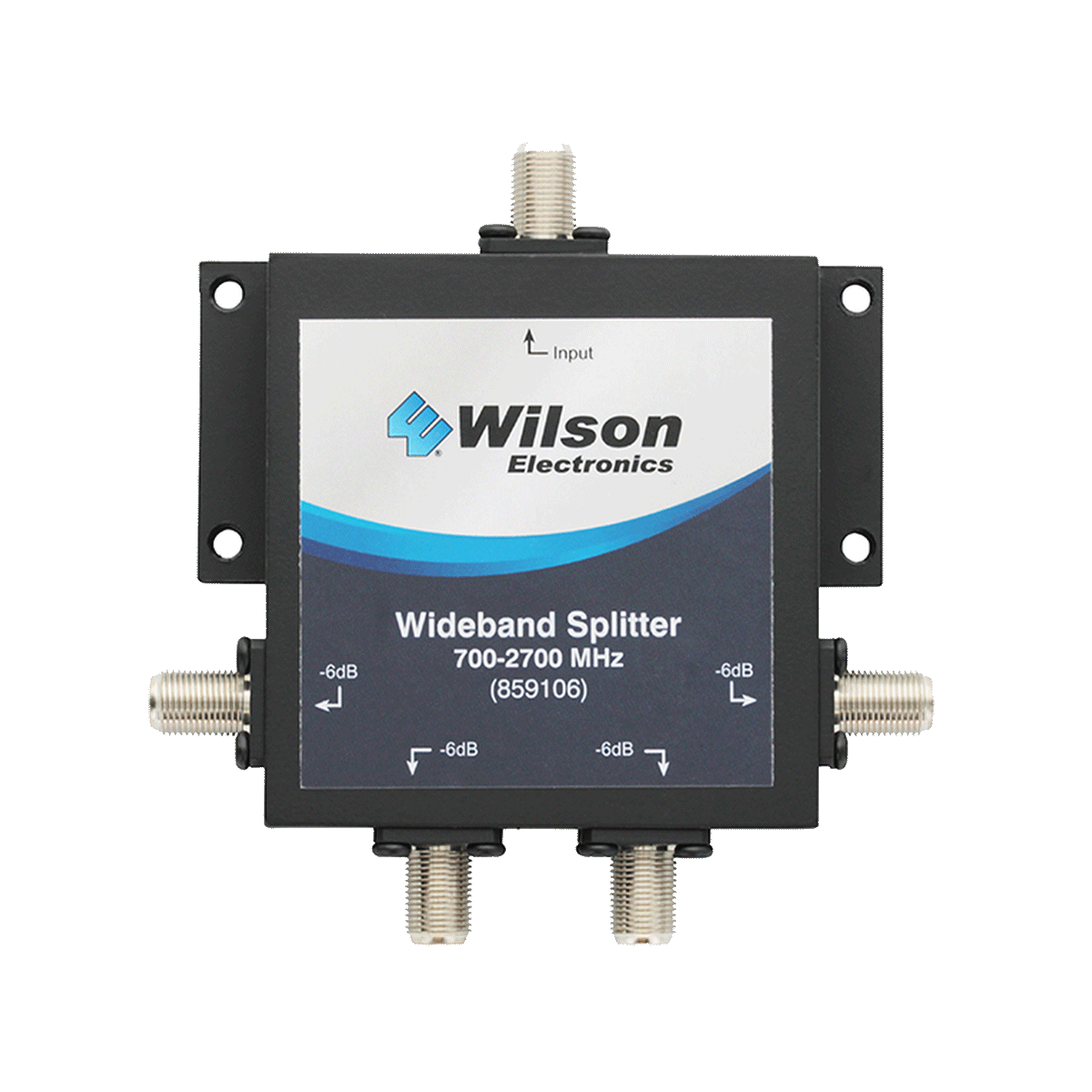

Splitter -6 dB 4 Way (75 Ohm)
SKU: 859106
4 Way Splitter, 75 Ohm with F Female Connectors. -6 dB, 700-2500 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
Tap -10 dB (F-Female)
SKU: 859976
75 Ohm with F Female Connectors. -10 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal for multiple inside antennas for minimum signal loss or for controlling the amount of signal to small and large areas. Features low-loss signal throughput with one -10 dB tap.
Tap -7 dB (N-Female)
SKU: 859114
50 Ohm with N-Female Connectors. -7dB, 700-2700 MHz.
Splitter -4.8 dB 3 Way (50 Ohm)
SKU: 859980
3 Way Splitter, 50 Ohm with N Female Connectors. -4.8 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
