SKU: 460119F
25 dBm max uplink
Up to 15 dB gain
Built-in passive RF bypass failover
Hardwire kit available
3 Year Warranty
from Purchase
Tailored Solutions
Custom System Design
Assembled & Shipped
from a U.S. Facility

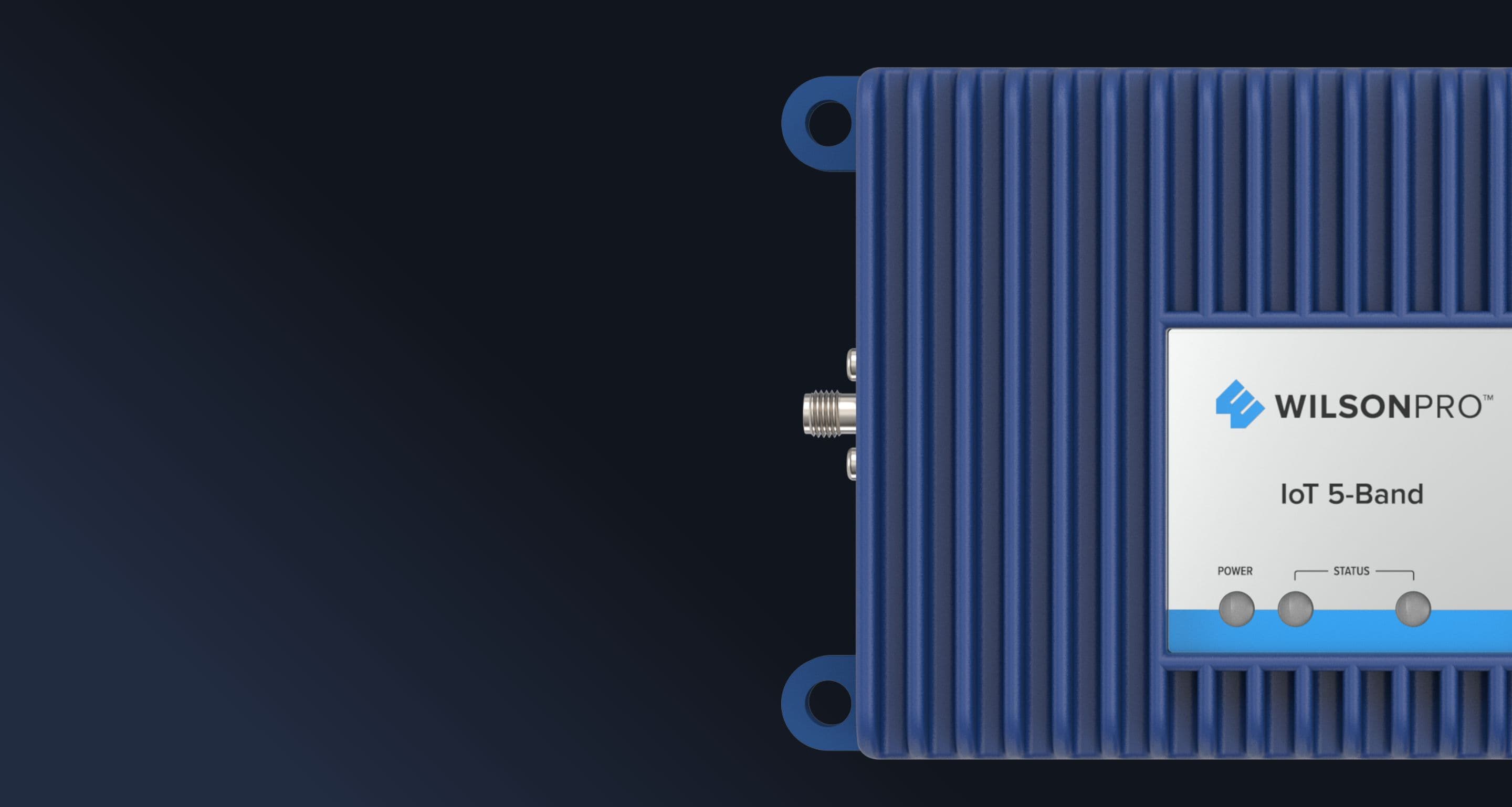

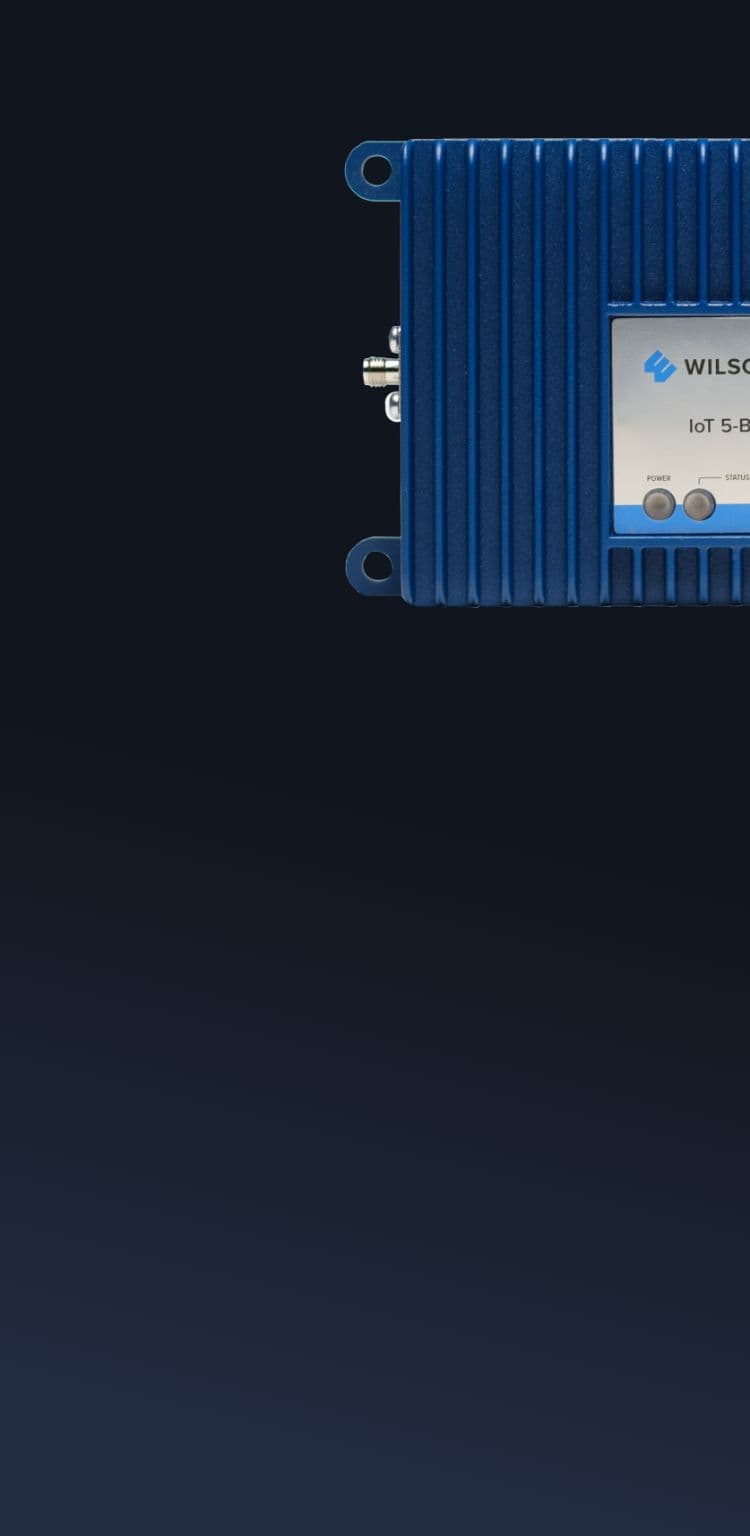

Ideal for custom-designed IoT communication systems built within tightly constrained spaces, the IoT 5-Band cell signal amplifier’s power and compact design make it a trustworthy “Direct-Connect” solution.
Compatible with all Canadian carrier networks and equipped with an impressive uplink power of up to 25 dBm and up to 15 dB max gain, the IoT 5-Band connects directly with cellular modems to ensure strong, reliable connectivity in weak signal environments. In the event of a power failure, the passive RF bypass failover feature allows the cellular modem to keep going to help guarantee successful IoT data transfer.
The IoT 5-Band’s compact form factor is ideal for custom designed IoT communication systems built within tightly constrained spaces. ISED certified, the IoT 5-Band allows OEMs to source a compact, powerful, and highly compatible cell signal amplifier that comes ready to deploy. In locations where cellular connectivity is adversely affected by distance to cell towers, terrain obstructions, or building materials (like concrete and steel), the IoT 5-Band is a proven go-to solution.
The IoT 5-band is offered in three different kit options:
The basic kit; ideal for ATMs, vending machines, or movie rental kiosks with access to AC power outlets.
The hardwire kit with DC power supplied by a vehicle to amplify cell signal for an LTE-modem hotspot.
Made for 5G – WilsonPro’s customizable cellular signal repeater solutions support the latest in 5G technology.
The powerful antenna receives cellular signal and delivers it to the booster.
The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.
The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.
25 dBm maximum uplink power, 15 dB max system gain
Designed to link with a data modem as a direct-connect amplifier
Improves overall cellular connectivity in weak signal environments
Configurable to almost any Internet of Things (IoT) installation
Bi-directional amplification boosts signals to and from cell towers
Passive RF bypass failover keeps modem going if power is lost
Auto-power control to help ensure maximum signal output
ISED-approved and compatible with all Canadian mobile carrier networks
IOT/M2M
Applications
Model | 460119F | ||||
---|---|---|---|---|---|
Frequency | Band 5 850 MHz | Band 12 700 MHz | Band 4 1700/2100 MHz | Band 13 700 MHz | Band 25/2 1900 MHz |
Max Gain | 15 dB | ||||
Max Uplink Power | 24 dBm | ||||
Max Downlink Power | -3 dBm | ||||
Impedance | 50 Ohm | ||||
Power | 110/240 V AC, 50 -60 Hz, 5 V DC - 5A | ||||
Connectors | SMA Female | ||||
Dimensions | 1.25 x 3.5 x 6.25 in | ||||
Weight | 1.085 |
