Product Description

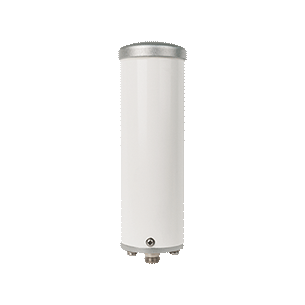

Omni Plus Building Antenna (50 Ohm)
Omni Plus Building Antenna for commercial/enterprise outdoor installation. 698-960/1710-2700 MHz omnidirectional pattern. Up to 5 dB gain. All weather protected. 50 ohm. Works for all U.S. and Canada cell carriers. N-Female connector. 2.5 inches W x 9.8 inches H (63 x 250 mm). N-Female connector. Includes Mounting Hardware.
Specs
| Model | 304422 | |||||
|---|---|---|---|---|---|---|
| Connectors | N-Female | |||||
| Dimensions | 9.8 x 2.5 x 2.5 in. | |||||
| Frequency | 2110-2700 MHz 5.0 | 1850-1990 MHz 5.0 | 1710-1880 MHz 5.0 | 700-800 MHz 2.0 | 880-960 MHz 2.0 | 824-894 MHz 2.0 |
| Impedance | 50 Ohm | |||||
| Weight | 1.9 lbs. |
