Product Description

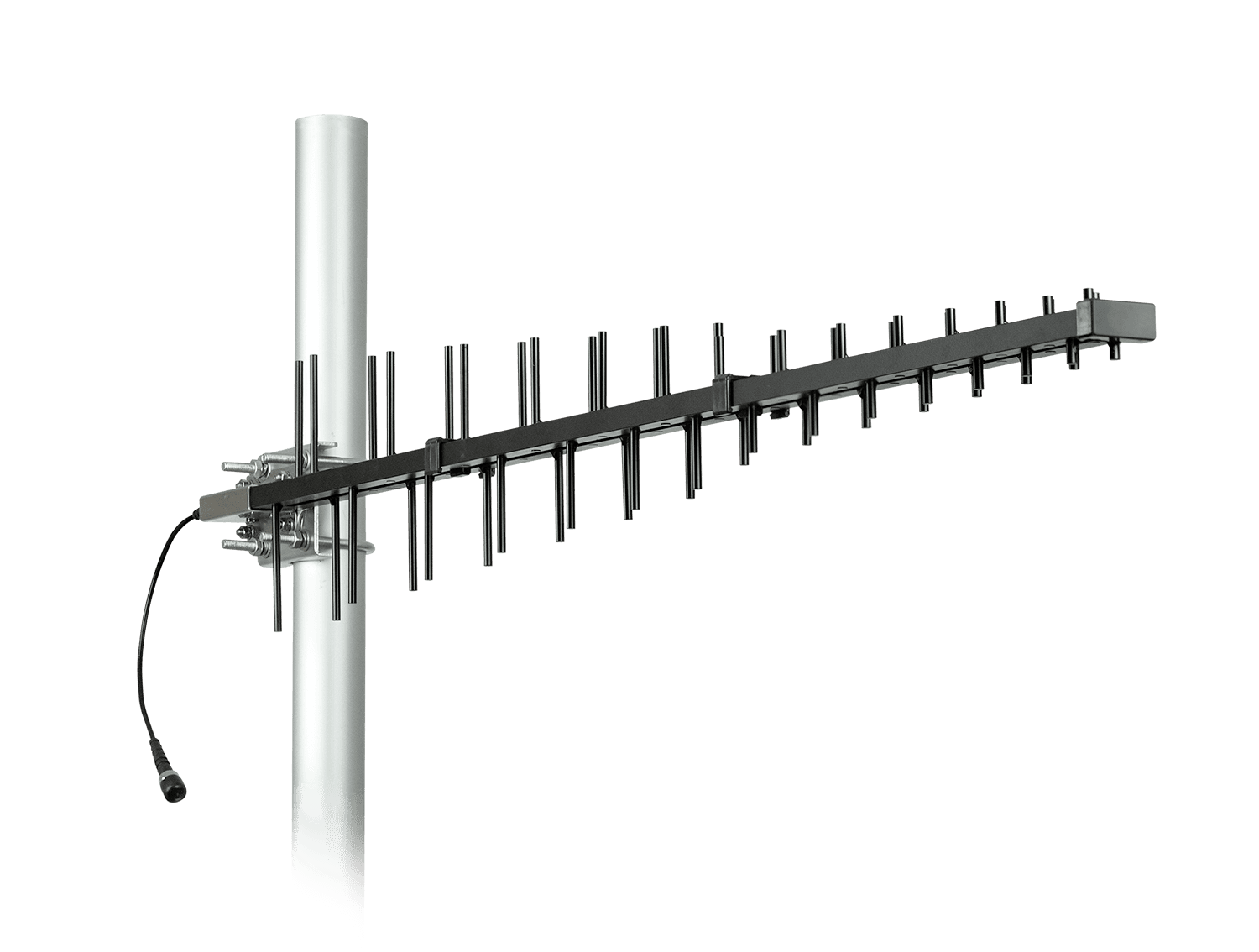

High Gain LPDA Antenna
Versatile, all-weather directional antenna
The High-Gain LPDA Antenna is made exclusively for commercial-grade WilsonPro amplifiers; regarded for its rugged, all-weather construction, high performance, and tilt-swivel bracket.
Versatile and powerful, it works on all worldwide cellular bands for voice and data; including LTE, CDMA, GSM, UMTS, and AWS. Designed to fit 1.5”-2” pipe/mast on a building’s exterior, the High-Gain LPDA Antenna is easily adjusted to point in the direction of nearby cell towers.
The High-Gain LPDA Antenna has a N-Female connector, comes with mounting hardware and works with WilsonPro amplifiers. It features a 2-year manufacturer’s warranty.
How it works
1. Outside antenna pulls in cell signal from the closest tower.
2. Booster amplifies the signal received by outside antenna.
3. Inside antenna distributes this new signal for indoor use.
Key Features
44” directional waterproof antenna for all-weather use
Optimizes signal by pointing directly at nearby cell towers
Uses as tilt-swivel bracket for easy yet precise adjustment
Works on LTE, CDMA, GSM, UMTS, and AWS cell bands
Designed for building exterior installation; direct at cell tower for best signal

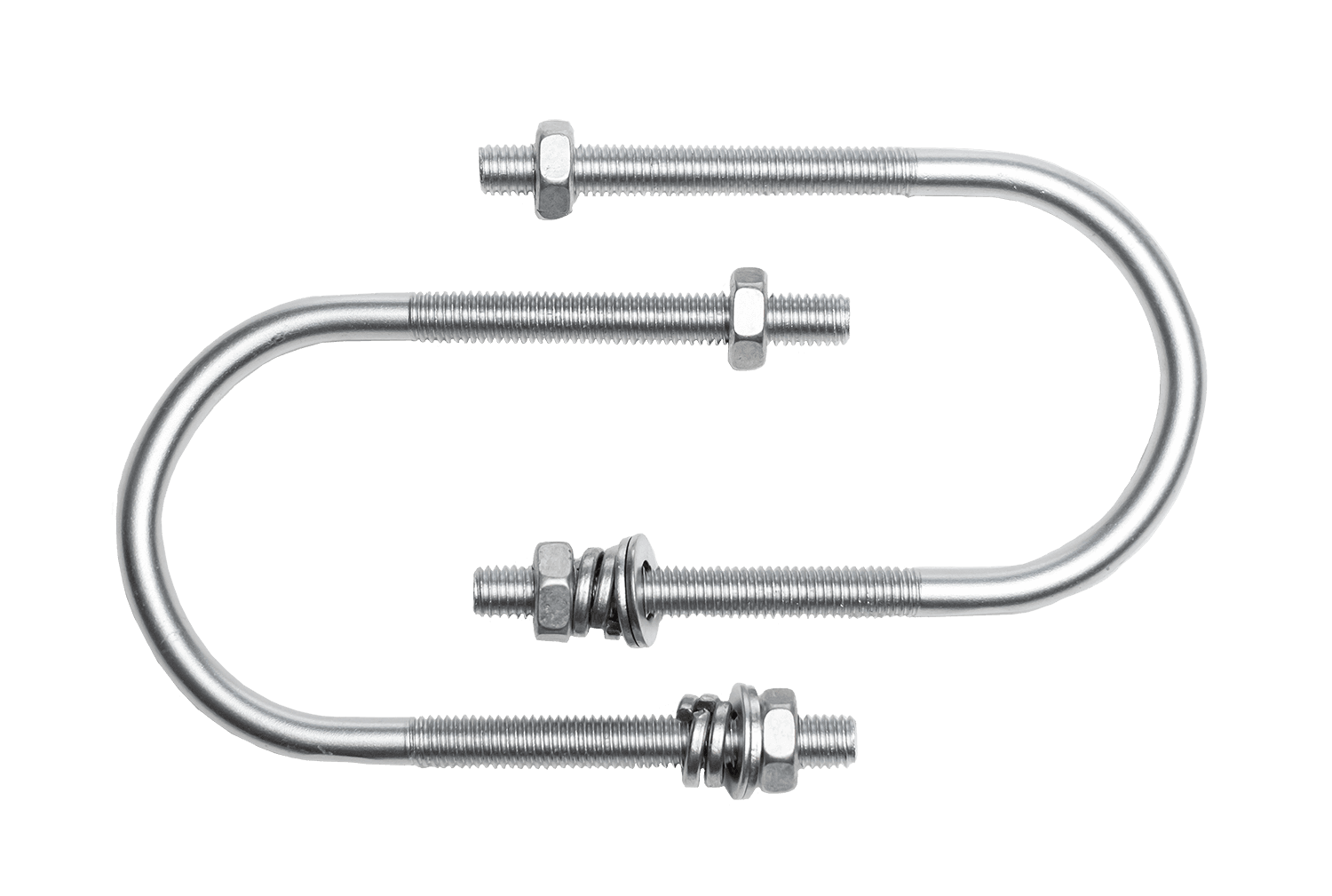

Simple install kit with tilt/swivel bracket for 1.5” to 2” diameter pipe/mas
High gain antenna for WilsonPro cellular repeater/boosters
Specs
| Model | 311228 |
|---|---|
| Antenna Type | Directional |
| Frequency Band (MHz) | 698-806•806-960•1710-1880•1900-2200•2200-2700 |
| Peak Gain (dBi) | 12.0 • 12.0 • 12.9 • 13.1 • 11.2 |
| Impedance | 50 Ohm |
| Power | 50 watts |
| Connectors | Female |
| Weight | 3.5 lbs./1.5 Kg. |
| Radiator Material | Aluminum |
| Pole Mount (in / cm) | 1.5-2.0 / 3.8-5.0 |
| Length (in / cm) | 44.0 / 111.7 |
| Polarization | Linear |
