SKU: 463127F
Boosts cell phone signal inside a building or large area
Up to 70 dB Gain
Expansion kits available
3 Year Warranty
from Purchase
Tailored Solutions
Custom System Design
Assembled & Shipped
from a U.S. Facility

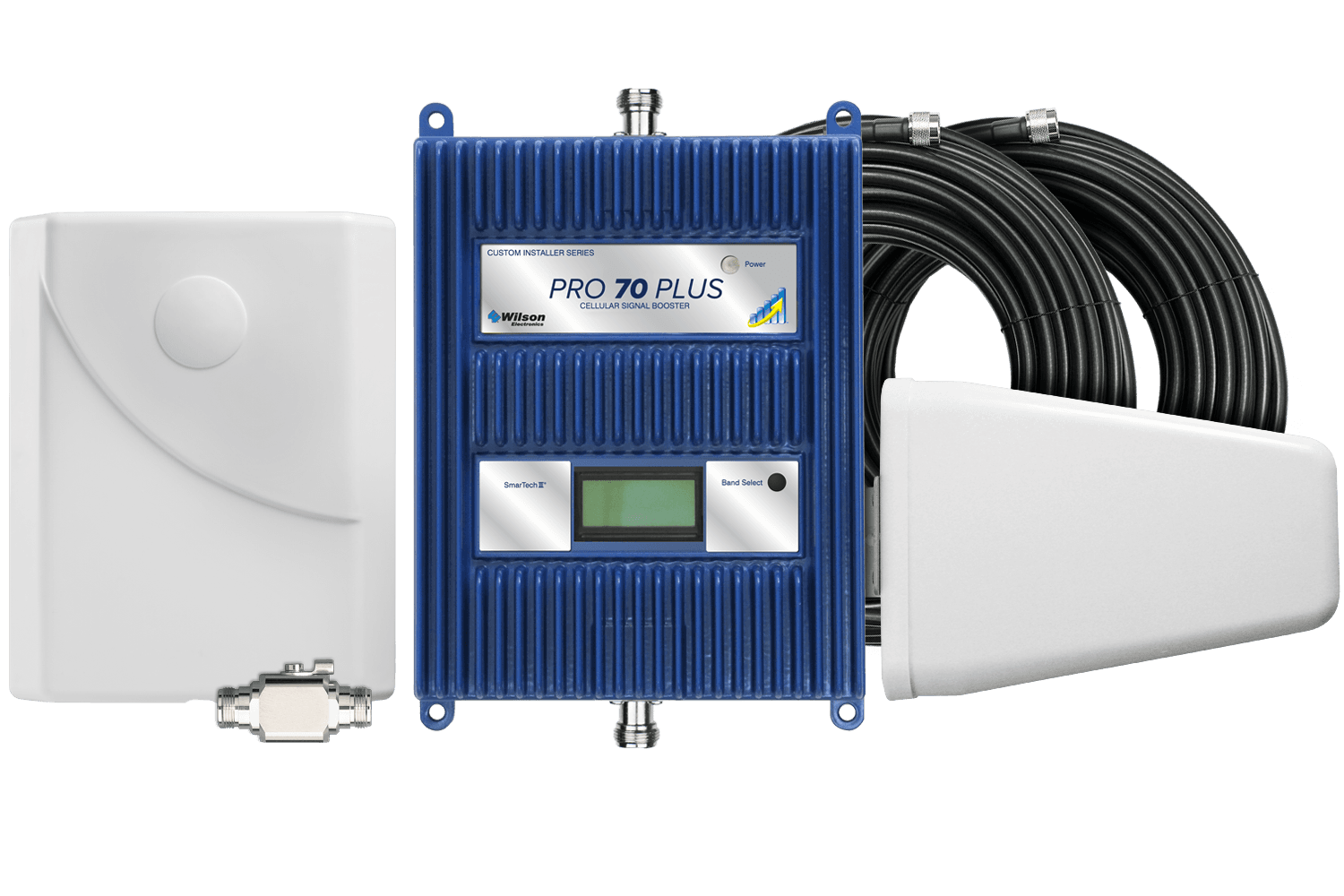

The Pro 70 Plus cellular amplifier amplifies weak cellular signals to provide reliable voice and data coverage inside homes and other buildings where signals may not penetrate.
The Pro 70 Plus features a self-optimizing microprocessor with a built-in graphical signal meter. The uplink and downlink power display makes it easy for the integrator to determine the direction of the cell tower and the strength of the available signal, which greatly reduce installation time.
Like all Wilson boosters, the Pro 70 Plus features cell site protections that prevent any possibility of interference with cell towers. Wilson Electronics quality and an industry-leading three year warranty make the Pro 70 Plus the clear choice for the professional technology integrator.
Made for 5G – WilsonPro’s customizable cellular signal repeater solutions support the latest in 5G technology.
The powerful antenna receives cellular signal and delivers it to the booster.
The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.
The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.
| Model | 463127F | ||||
|---|---|---|---|---|---|
| Connectors | N-Female | ||||
| Dimensions | 1.5 x 6 x 8.75 in | ||||
| Frequency | Band 25/2 1900 MHz | Band 4 1700/2100 MHz | Band 13 700 MHz | Band 12 700 MHz | Band 5 850 MHz |
| Impedance | 50 Ohm | ||||
| Max Gain | 70 dB | ||||
| Power | 110-240 V AC, 50-60 Hz, 20 W | ||||
| Weight | 2.78 |
50 Ohm Wide Band Directional Antenna
SKU: 314411
50 Ohm Wall Mount Panel Antenna
SKU: 311135
75 ft. Wilson-400 Ultra Low-Loss Cable (N-Male to N-Male)
SKU: 952375
60 ft. Wilson-400 Ultra Low-Loss Cable (N-Male to N-Male)
SKU: 952360
2 ft. Wilson-400 Ultra Low-Loss Cable (N-Male to N-Male)
SKU: 952302
AC/DC Power Supply 12V/3A
SKU: 850010
Lightning Surge Protector With (50 Ohm) N-Female Connectors
SKU: 859902
Fill out and submit the form. We’ll review how WilsonPro can solve your unique business challenge. Then, we’ll connect you with an authorized WilsonPro provider who can prepare an estimate on an in-building cell signal amplification solution—customized to fit your needs.
To better understand our process, download:
The Definitive Guide to WilsonPro Cellular Amplifier Installation
