Enterprise 4300R

SKU: 460153F

Enterprise-4300R-GroupingEnterprise-4300R-Grouping-WebEnterprise 4300/R – Cloud-Managed Professional Cellular Amplifier | WilsonProEnterprise-4300REnterprise-4300R-WebEnterprise-4300R-BackEnterprise-4300R-Back-Web
Video
  • 26 dBm max uplink
  • Up to 70 dB Gain
  • 4 indoor antenna ports, up to 17 dBm each
  • Remote access through WilsonPro Cloud
  • Multi-Tower Targeting Technology
Check Mark Icon

3 Year Warranty

from Purchase

Design Icon

Tailored Solutions

Custom System Design

Location Icon

Assembled & Shipped

from a U.S. Facility


Product Description

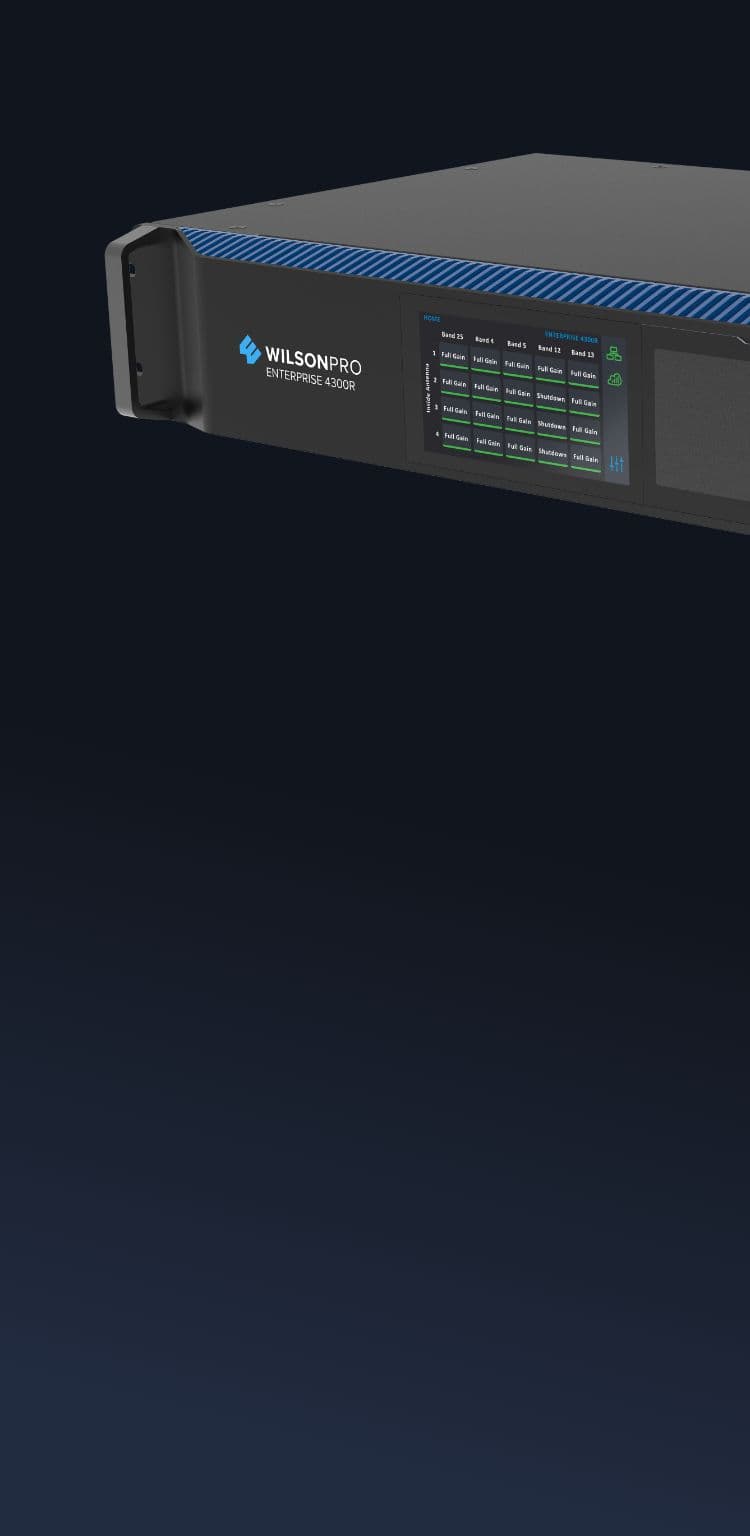

Enterprise 4300R

The WilsonPro Enterprise 4300R in-building cellular amplifier is the culmination of the latest cell signal boosting innovations—centered on its all-new Multi-Tower Targeting technology.


Depending on cell tower locations, it can run up to three outdoor antennas; each dedicated to a specific frequency band to collectively amplify signals from multiple towers. Based on user need or preference, Enterprise 4300R can also utilize “common mode” as its default; requiring only a single outdoor antenna to deliver enhanced cell signal coverage to its four indoor antennas.


With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, integrators and building managers can remotely manage, monitor, and adjust the Enterprise 4300R using a smartphone or tablet. Immediate notifications are received via email or text. Designed to reach towers at greater distances, it also produces up to 26 dBm in uplink and up to 17 dBm in downlink—making it one of the most powerful amplifiers within its price range.


Relying on its four independently controlled indoor antenna ports, equipped with up to 17 dBm downlink power of their own, the Enterprise 4300R amplifies coverage area up to 100,000 sq. ft per amplifier.


Designed for rack-mount configuration. A wall-mount option available (Enterprise 4300.)


Click here for a recording of the webinar on the Enterprise 1300/4300.


Made for 5G – WilsonPro’s customizable cellular signal repeater solutions support the latest in 5G technology.

How it Works

Enterprise 4300R
Enterprise 4300R How it Works
1

The powerful antenna receives cellular signal and delivers it to the booster.

2

The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.

3

The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.

Case Study

Enterprise Cellular Amplifiers First to Offer Multi-Tower Targeting with Three Outdoor Donor Ports

Learn More

Key Features

  • Four independently controlled indoor antenna ports to power four indoor antennas
  • Wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud
  • Remote management, monitoring, and adjustment of amplifier via smartphone or tablet
  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +26 dBm max uplink power, +17 dBm max downlink power on each indoor antenna port
  • Covers up to 100,000 sq. ft. per amplifier with enhanced cell signal on all available network speeds

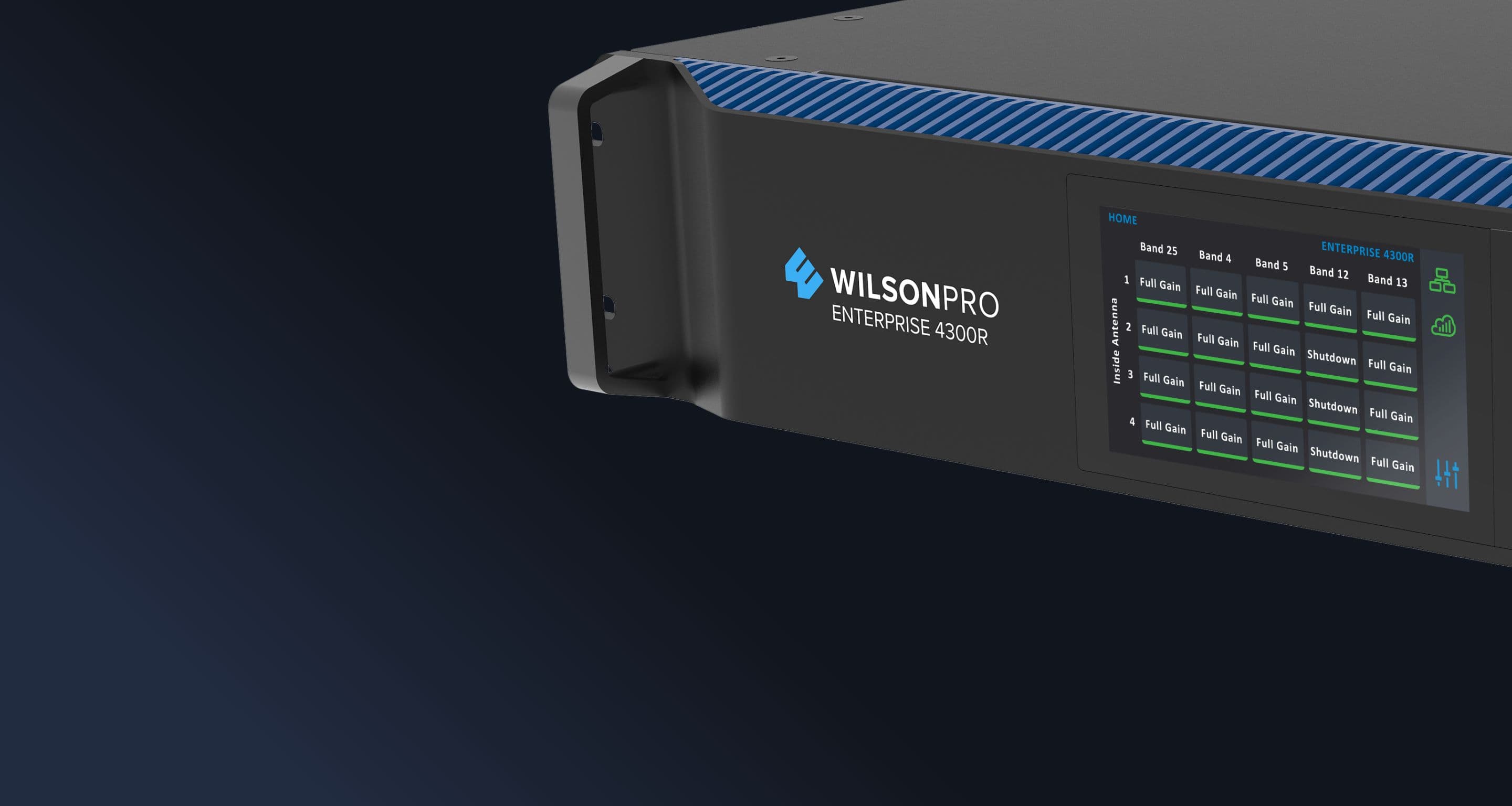

  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • Rack-mount installation
  • Three outdoor antenna ports for exclusive Multi-Tower Targeting Technology
  • ISED-approved and compatible with all Canadian mobile carrier networks

Specs

Model460153F
ConnectorsN-Female
Dimensions17.5 x 12 x 3.75 in
FrequencyBand 12/17 700 MHzBand 5 850 MHzBand 25 1900 MHzBand 13 700 MHzBand 4 1700/2100 MHz
Impedance50 Ohm
Max Gain70 dB
Power110 - 240 V AC, 50 - 60 Hz, 30 W
Weight9.86 lbs
